Lot with Cover Plate and Rinsing Spray by Dornbracht

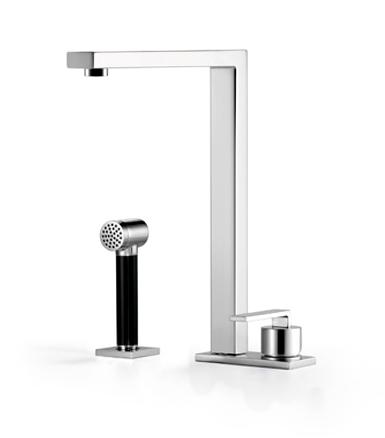

LOT is sculptural in appearance; an extremely architectural fitting with an ultra flat one-piece spout. It focuses on function, draws back - and that is just what makes it so striking. Combined with the surface in matt platinum, its character oscillates between the severity of the form and the warmth of the material. LOT is uncompromising, pared down and yet functional - a fitting for modern, discerning architectural kitchens. Pure, clean and elegant.

235 mm projection
Pivotable spout 360°
Height of mixer 345 mm
Hole diameter rinsing spray 32 mm
Mixer hole diameter 44 mm
Hole diameter spout 35 mm
Hole diameter gauge 71.5 mm
M 24 x 1 aerator – male thread
Cartridge with ceramic discs
1x M 10 x 1/2" x 420 mm high pressure hose
Automatic spout/shower diverter
2x M 10 x 1 x 420 mm high pressure hose
Attachment tube with 185 mm fitting
Cover plate 126 x 55 mm
1750 mm metal shower hose for rinsing spray set
Max. flow rinsing spray max. 6 l/min at 3 bar flow pressure
Two-hole mixer max. 7.5 l/min at 3 bar flow pressure
Sprayface with anti-scaling system
Intrinsic protection against back flow.
Recommended minimum flow pressure: 2.5 bar.

Details

SKU 1375

Model 32 843 680 + 27 714 970

Typical lead time 1 - 4 weeks

Our price: £1375.00 (€1718.75)

Options

Finish

Quantity
